eControl Pre-Install Guide

This guide is made specifically for our own customers. Other conversion systems will have different requirements.


With the controllable eControl system, there are some pre-installation requirements that need to be completed before we arrive.


Please make sure these are all completed and in place before we arrive. If not, and we can't safely complete the conversion/install, we may need to charge for a 'failed install' and reschedule to the next available date in our diary (usually +3 months).


1. Fuel Disconnection

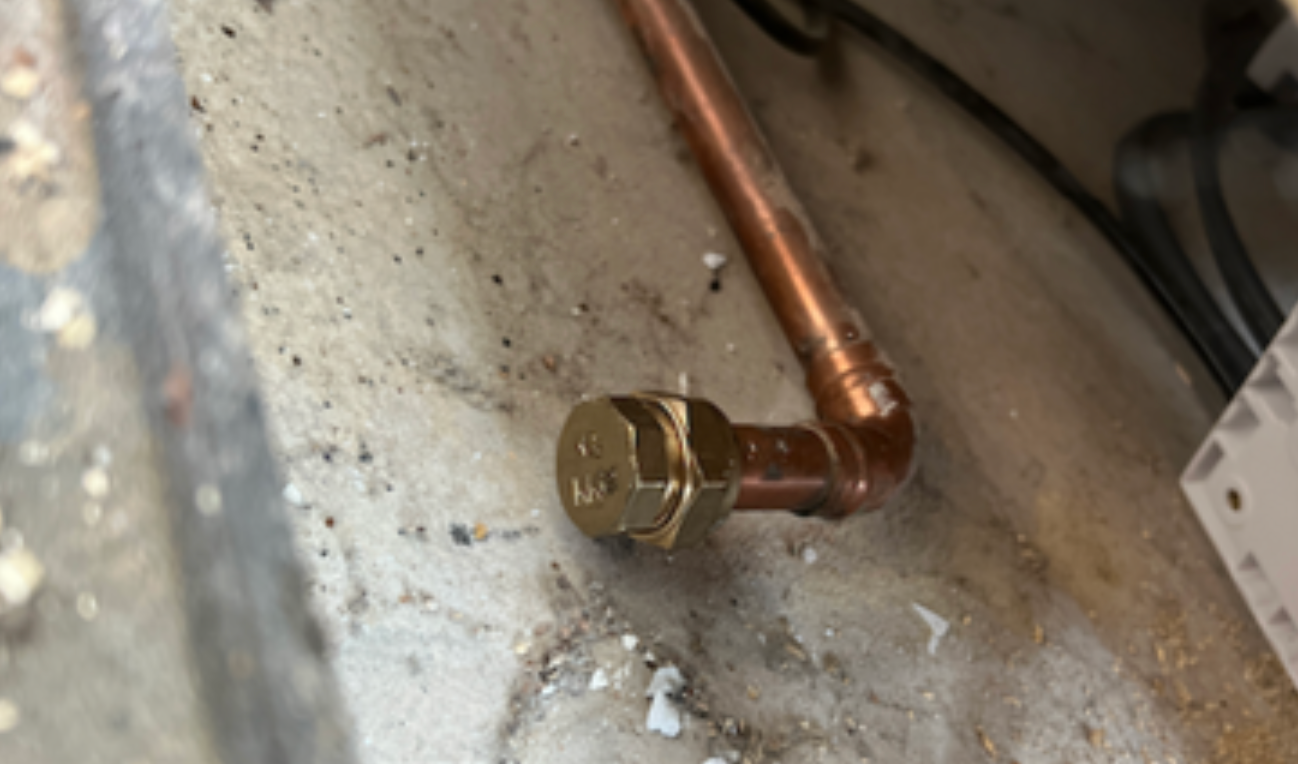

If you're converting an existing Aga Cooker, your oil or gas line will need to be cut and blanked off  before we arrive.


If you have a hot water boiler inside the Aga Cooker,  the two 28mm flow pipes coming out of the cooker (usually out of the side panel), will also need to be cut and blanked off at the same time as the oil/gas line.


Do not run the cooker whilst the boiler pipes are disconnected.


This completely isolates the cooker from the system, so that it's ready for dismantling.

2. Electric Requirements


There are no internal fuses inside the conversion systems


For eControl Series x2 Installations:


2 Oven Sx2: 7.75kW

1 x 32amp supply, with connection point and isolation switch.

with Instaheat: 40amp supply


3 Oven Sx2: 9.25kW

1 x 40amp supply, with connection point and isolation switch.

with Instaheat: 40amp supply


4 Oven Sx2: 8.25kW

1 x 32amp supply, with connection point and isolation switch.

with Instaheat: 40amp supply


The Induction Hotplate and/or the Twin-Zone InstaHeat Hob required an additional 13amp plug socket, next to the Aga Cooker.


The Aga Cooker will be cabled up using 6mm or 10mm x 3 Core H07RN-F cable.

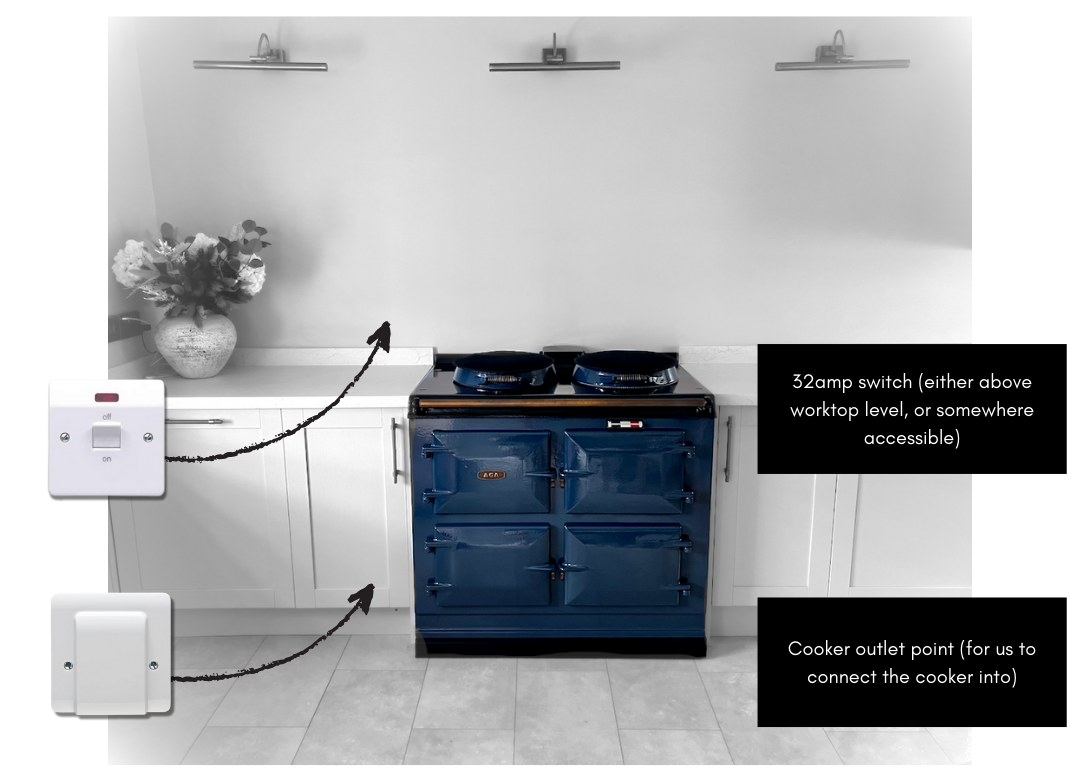

3. Electric Positioning


Once your electrics are installed, we'll need a photo showing the position relative to the Aga Cooker (or proposed Aga cooker position).


We'll add these to your job file to make sure they're all correct, and we bring plenty length of cable for your install.



  • The electric system needs a dedicated supply.
  • Electrics must be installed prior to the conversion (no bare wires please!).
  • They can be to either the left or right of the cooker.
  • The connection point should be low-level, below worktop height.
  • Electrical work must be carried out to specification by a qualified electrician.
  • The power cable is 6mm (or 10mm) x 3 Core H07RN-F.
  • The connection point/switch must allow complete electrical isolation of the cooker by a multi-pole switch.
  • The connection point/switch must have a contact separation of at least 3mm on all poles.
  • We recommend fitting an RCD to the cooker circuit.
  • We can’t support or install any third-party timers purchased.
  • Our conversion engineers don’t have the tools to trace cables through walls or inside cavities.


4. Site Preperations


We'll need a note of any access issues before we arrive (narrow passages, stairs, steps or parking restrictions etc).


If you're converting an existing Aga Cooker, we'll bring our industrial hoover. We usually place this outside and snake the 10m hose through the kitchen window to help keep dust down. Please let us know in advance if this won't be possible.


We'll bring floor coverings with us, but there will still be dust, so it's best to tuck away any food or appliances etc.

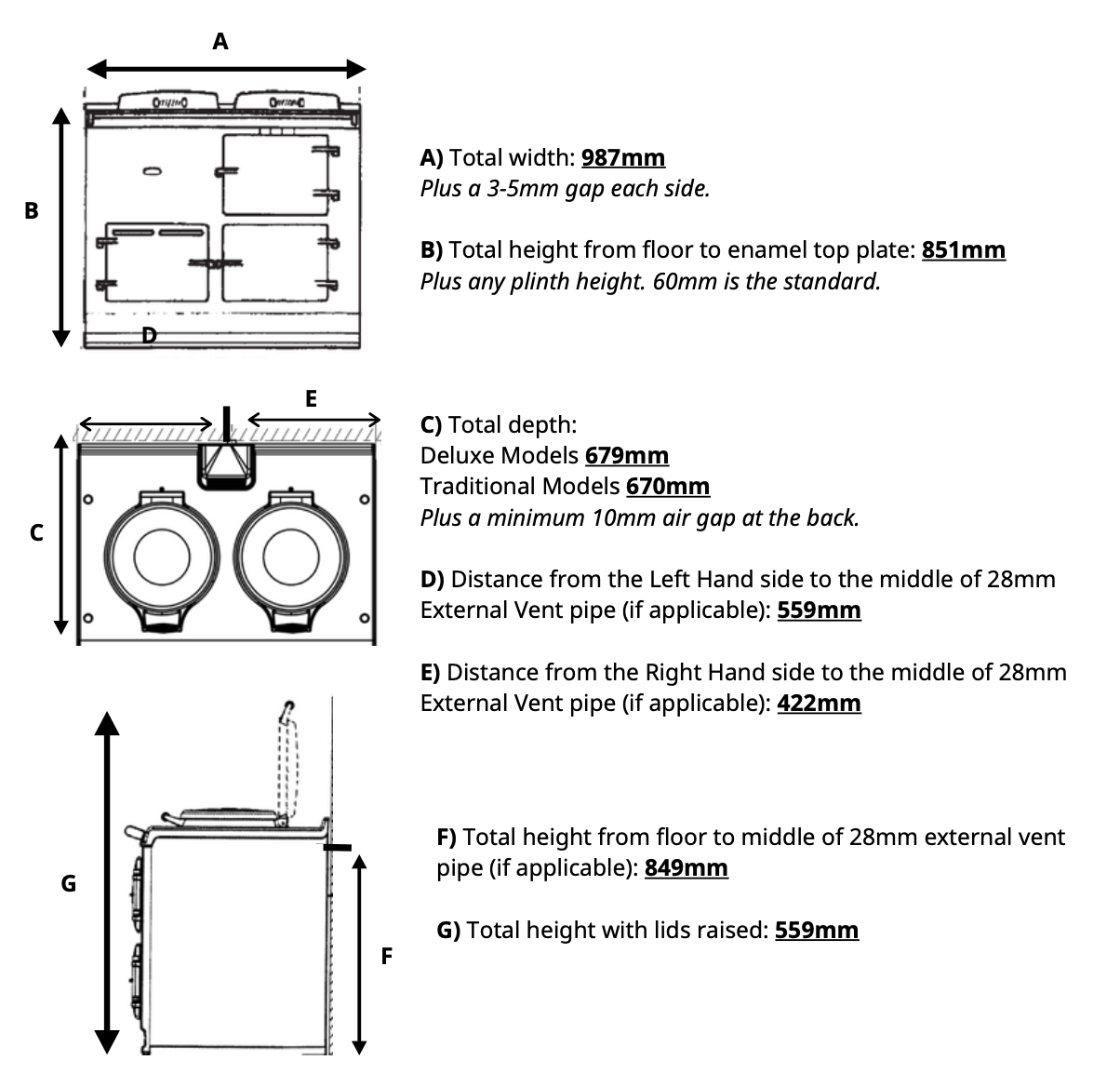

Dimensions of 2 and 3 oven aga cookers:

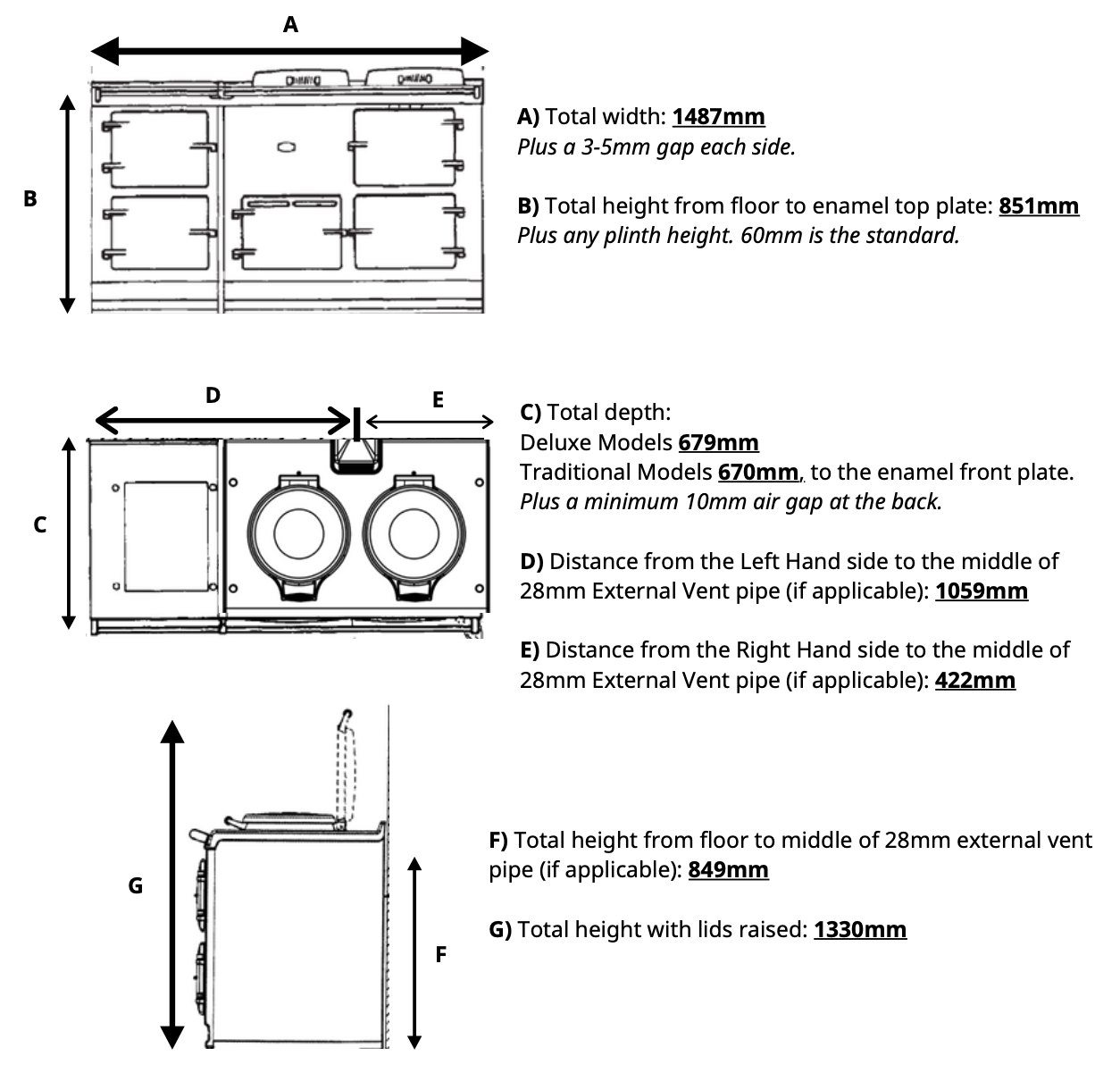

Dimensions of 4 oven aga cookers:

5. Life After Installation


Your cooker has been ‘reborn’!


After installation, we'll give you a thorough run down of the system, how it works and some tips with an opportunity to ask any questions you have. We'll then send you an email summarising the 'quick start' points and a copy of your user guide for future reference.


Your cooker has the same cast iron ovens as the traditional models, but you have much more control. The benefit of the eControl is the placement of the elements, with the most powerful ones above and below your top oven. This has great temperature regulation, but it also means the floor of your ovens will be hotter than oil/gas models. Simply place a grid shelf on the floor to lift the food off the base and cook and normal. To grill or crisp dishes, remove the perforated baffle plate and raise your dish close to the roof of the top oven (like a traditional aga cooker).


Some traditional models run hotter than normal. In these cases, you might find the temperature ranges of the new electric system hotter (or cooler) than other Aga Cookers that you've used in the past. The difference is that you can adjust the hotplate/oven temperatures much more easily than traditional models! Your hotplates can both reach approximately 360c and your roasting oven maximum is 265c - so you shouldn’t have a problem with it being too cool, but it’s worth mentioning.


The hotplates can’t be left on full heat when the lids are closed.  On "Series X" systems, the hotplates should be kept on ECO mode (or turned off) when the lids are closed. The Series x2 system automatically reduces the temperature if you forget to turn them down, although we recommend using them as and when needed, since they heat up very quickly.


The ambient warmth to the room will be reduced compared to traditional 'always on' models. We estimate you will feel at least 40% less heat, but this is due to the ceramic fibre insulating blanket around the ovens etc. The insulation used with the conversion is amazing quality and great for efficiency. Unfortunately, in order to become an efficient, flexible Aga cooker, some reduction in lost heat is to be expected.


There may be some smoke and smells during the ‘burn off’ period. After the conversion is complete, we'll set it to the required Burn Off settings. Once the Aga Cooker is turned on for the first time, the oil on the hotplates will burn off, sealants will cure, and some starch lagging in the insulation blanket will ‘sweat’. This can emit a strong smell and some smoke, but will dissipate after a few hours/overnight. You should also wipe away any condensation drips that form on the front plate asap. Leaving these to dry or sit on the enamel can permanently stain it.


Once the burn off has completed, you can cook to your hearts content. We recommend waiting until smoke and smells stop before using your Aga cooker. We don’t want those sealant smells permeating the food. This can be a few hours after initial firing but in some cases, overnight.

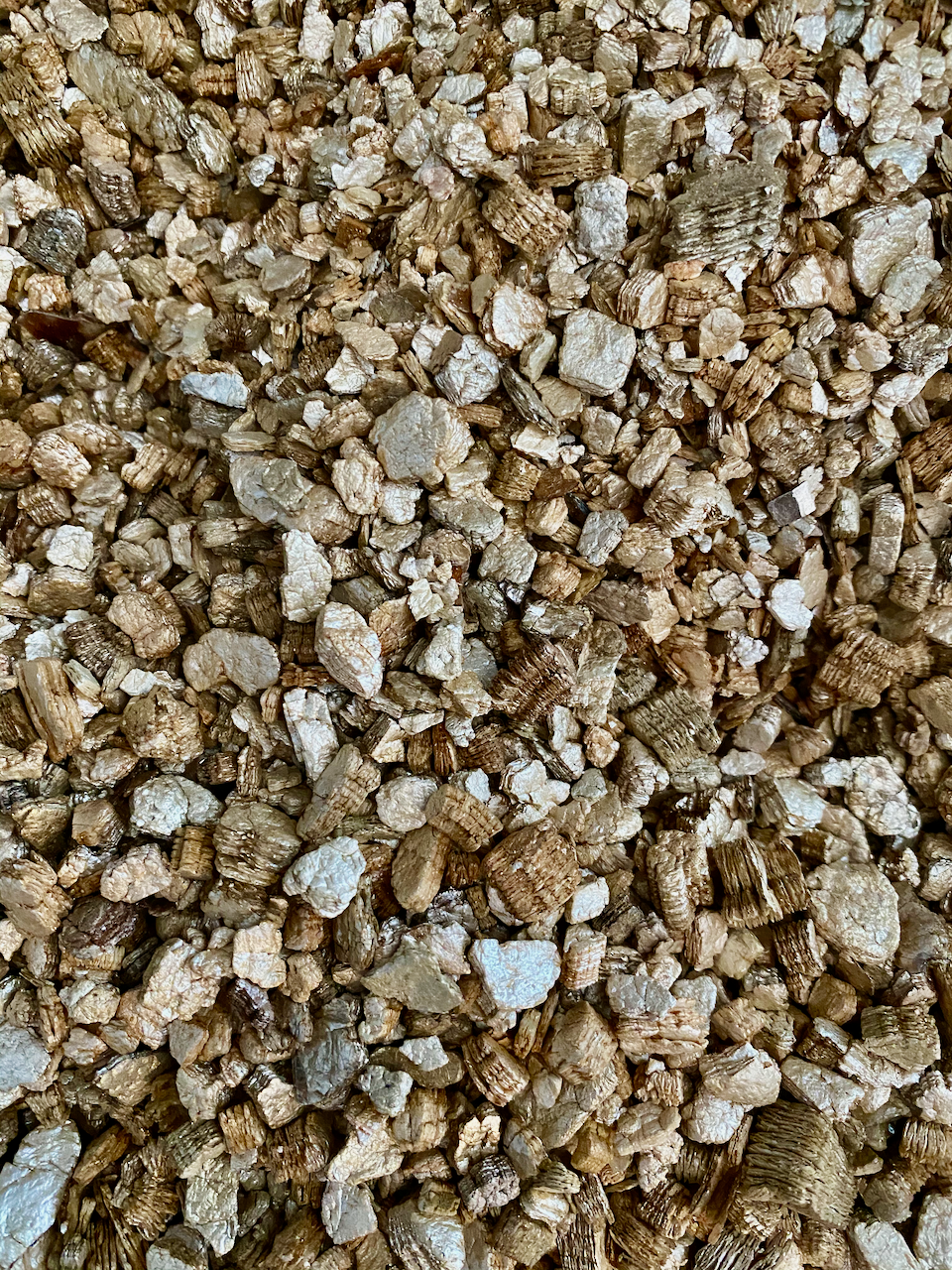

There may be little pieces of vermiculite left after we leave. Especially if it's raining outside. Vermiculite is expanded mineral and can be 'squashed' into the floor if it gets wet. It can be removed with a stiff brush or a mop.


If you've found our information and service helpful (even if you haven't booked in for a conversion with us!), please leave us a review - just click on the TrustPilot Logo.


5-star reviews help us more than you know, and it makes sharing all of this information worth it!


If you ever need anything from us after our installation, just get in touch - we're happy to help.


If you're looking for any recipes or cooking advice from other users, there's a dedicated Facebook Group called 'ElectricKit Agas'.



About The Author:


Steven has been working with Aga Cookers since he was helping his father from the ripe old age of 10 years old! He created SALTIRECOOKERS with transparency and information in mind - a sustainable, family business, built to advise and share knowledge passed throughout the generations.


His absolute favourite part of the job is meeting all of the dogs.


About The Author:


Steven has been working with Aga Cookers since he was helping his father from the ripe old age of 10 years old! He created SALTIRECOOKERS with longevity in mind - a sustainable, family business, built to last throughout the generations. His favourite part of the job is meeting the dogs, seeing a good before/after and hearing great feedback.

Some Further Reading:


11 September 2025
How Much Does it Cost to Run an Aga Cooker?
by Steven Johnson 26 May 2025
This guide is made specifically for our own customers. Other conversion systems will have different requirements. Whether you have the most up-to-date ElectricKit Advanced Conversion , or the manual ElectricKit Classic Conversion , there's some pre-installation requirements that need to be completed before we arrive. Please make sure these are all completed and in place before we arrive. If not, and we can't safely complete the conversion/install, we may need to charge for a 'failed install' and reschedule to the next available date in our diary (usually +3 months).
by Steven Johnson 25 May 2025

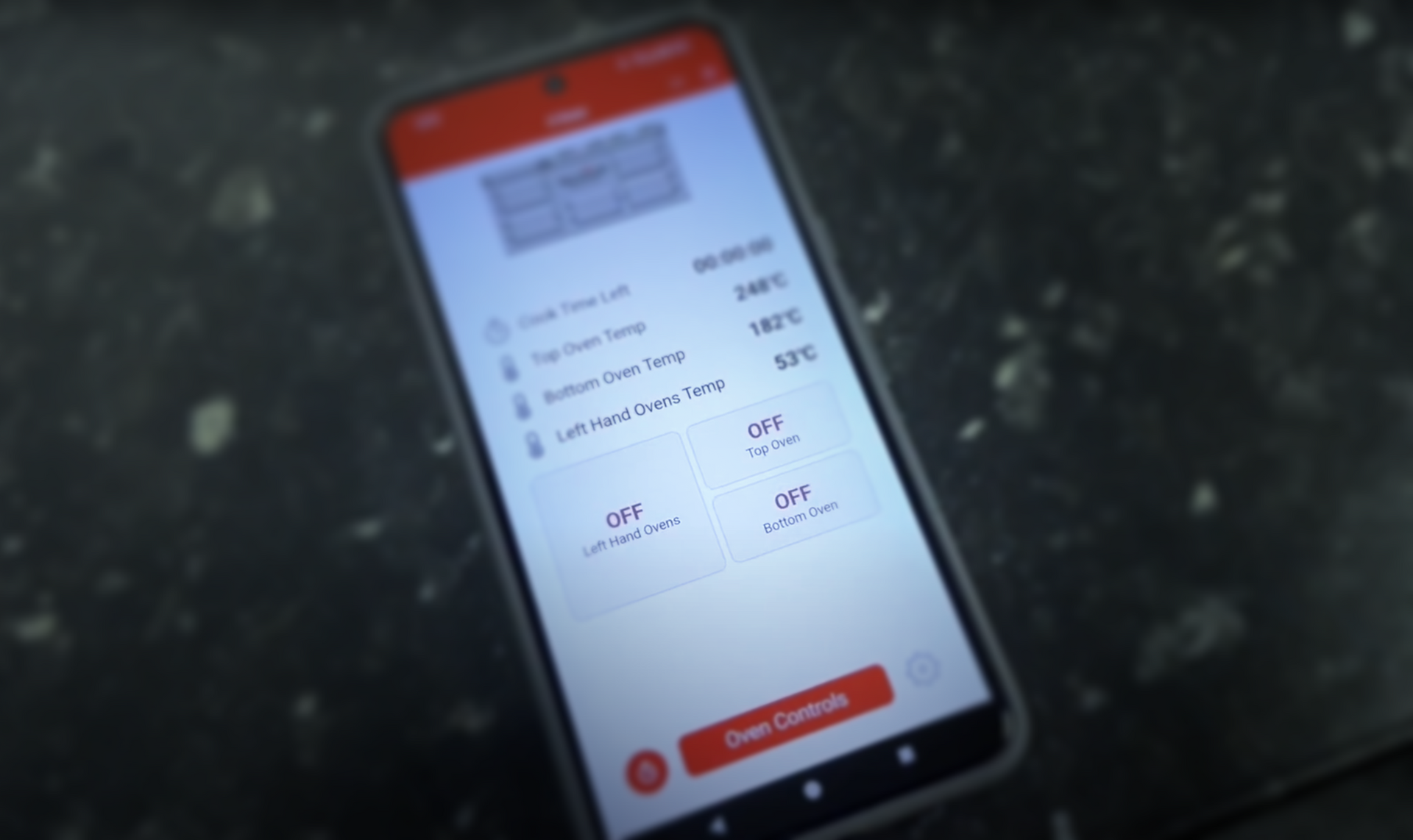

Looking to control your Aga Cooker from your phone? You can use the Smart Life App to control your ElectricKit Oven temperatures, and adjust automatic schedules. This is perfect for timing your Aga Cooker to reach ideal temperatures for when you get home from work, or adjusting settings or timers when away from the cooker.
